Stabilizer Bar

LX1018213
LX1018213-UN-24OCT97

LX1018214
LX1018214-UN-24OCT97

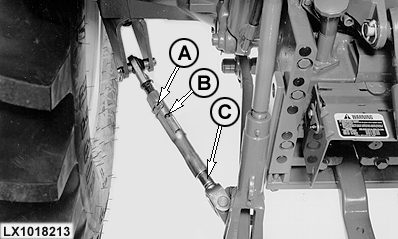

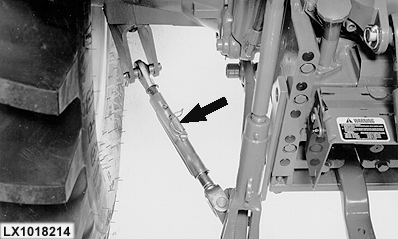

The bar can be adjusted to suit any category by means of pin (A) and/or threaded rod (B). Alternative bolt position (C) also alters the category. The different categories are marked on the threaded rod by grooves.

If pin (A) is not required (it must be removed to allow the draft links to sway), it can be stored in the tubular retainer.

LX,OMREG 011309-19-19970920
